Fuse cutout switch

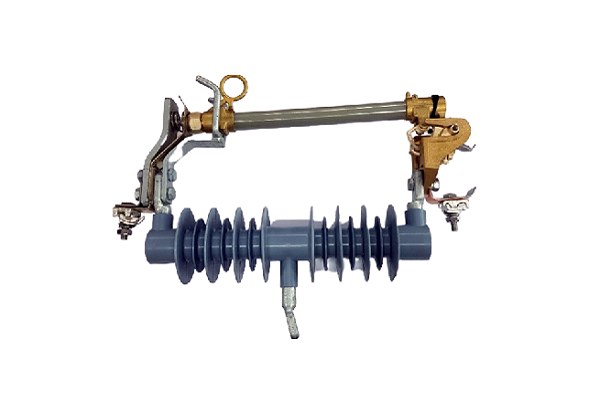

Product Name Polymer Fuse Cutout Switch
Purpose The polymer fuse cutout switch is attached to primary side of main equipment such as pillar transformer and mold transformer in order to protect them from over current due to short circuiting
Characteristic
Features of Polymer Fuse Cutout Switch
  • Has a simple structure and high mechanical strength, as well as being easy to operate.
  • Has excellent electric and mechanical properties – proven by the fact that it led standardization both domestically and internationally.
  • Is light and easy to handle, which enable reduction of cost of construction and transport (polymer fuse cutout switch)
  • Has high tensile strength has polymer and FRP ROD has been used. Is also highly resistant to shock (polymer fuse cutout switch)
  • Is excellent in regions such as islands, cities, shores or factories where contamination-resistance is needed. ((heavy duty and polymer fuse cutout switch)

Classification

Description

Designation

SPC

Rated  voltage

25.8 kV

Maximum Rated Voltage

   27 kV

Breaking Current

Sym

8 kA

Asym

12 kA

Power frequency withstand           voltage

Dry

70 kV 1min

Wet

60 kV 10s

Lighting Impulse withstand voltage

150 kV

Bending Strength

9.8 kN

Creepage Distance

520 mm

Body Material

Polymer
