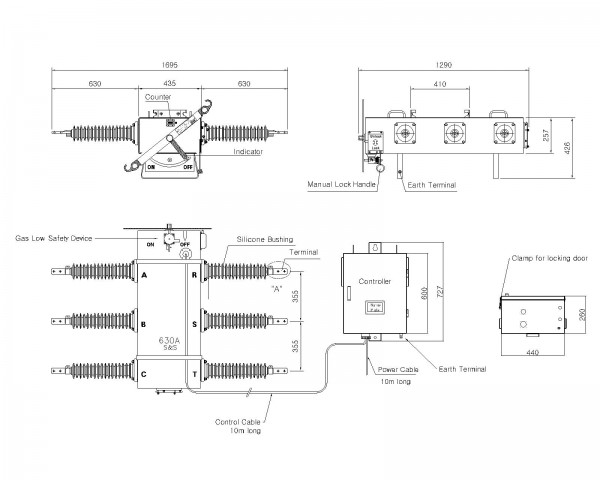

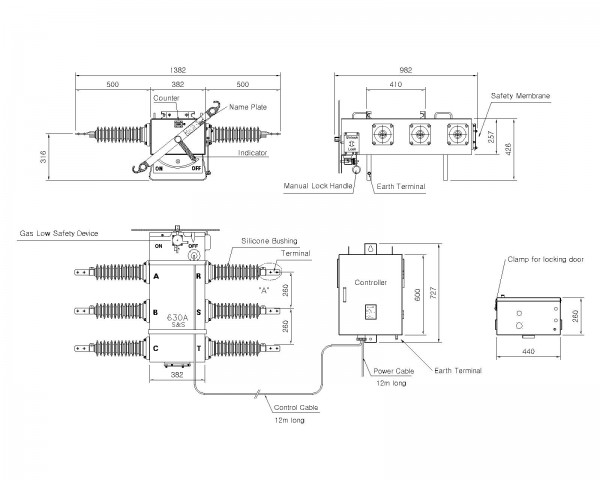

SF6 Gas Insulated Load Break Switch for overhead line outline drawing

페이지 정보

작성자 에스얜에스 댓글 0건 조회 952회 작성일 21-10-21 20:58

본문

첨부파일

GAS LBS Manual.pdf (1.2M) 79회 다운로드 | DATE : 2022-04-08 19:31:14
GAS LBS Catalogue_Rev.pdf (11.2M) 86회 다운로드 | DATE : 2022-05-24 19:17:52

이전글Epoxy Isulated Load Break Switch for overhead line outline drawing 21.10.21
다음글SFo GAS Insulated Auto Section Switch outline drawing 21.10.21
